HASUH Pump Gate®, completed in Ip-myeon, Gokseong-gun, Jeonnam-do, Korea

Project             : Jewol Pump Station
Pump Capacity: Ф500mm x 30cmm x 5.2mH x 2ea
                         : Ф500mm x 30cmm x 5.0mH x 2ea
                         : Ф500mm x 30cmm x 3.6mH x 2ea
Contract Period: 2010. 06. 08 ~ 2012. 12. 20
Location           : Jewol-ri, Ip-myeon, Gokseong-gun, Jeonnam-do, Korea


                                   Upper beam is welded to form a complete guide frame.

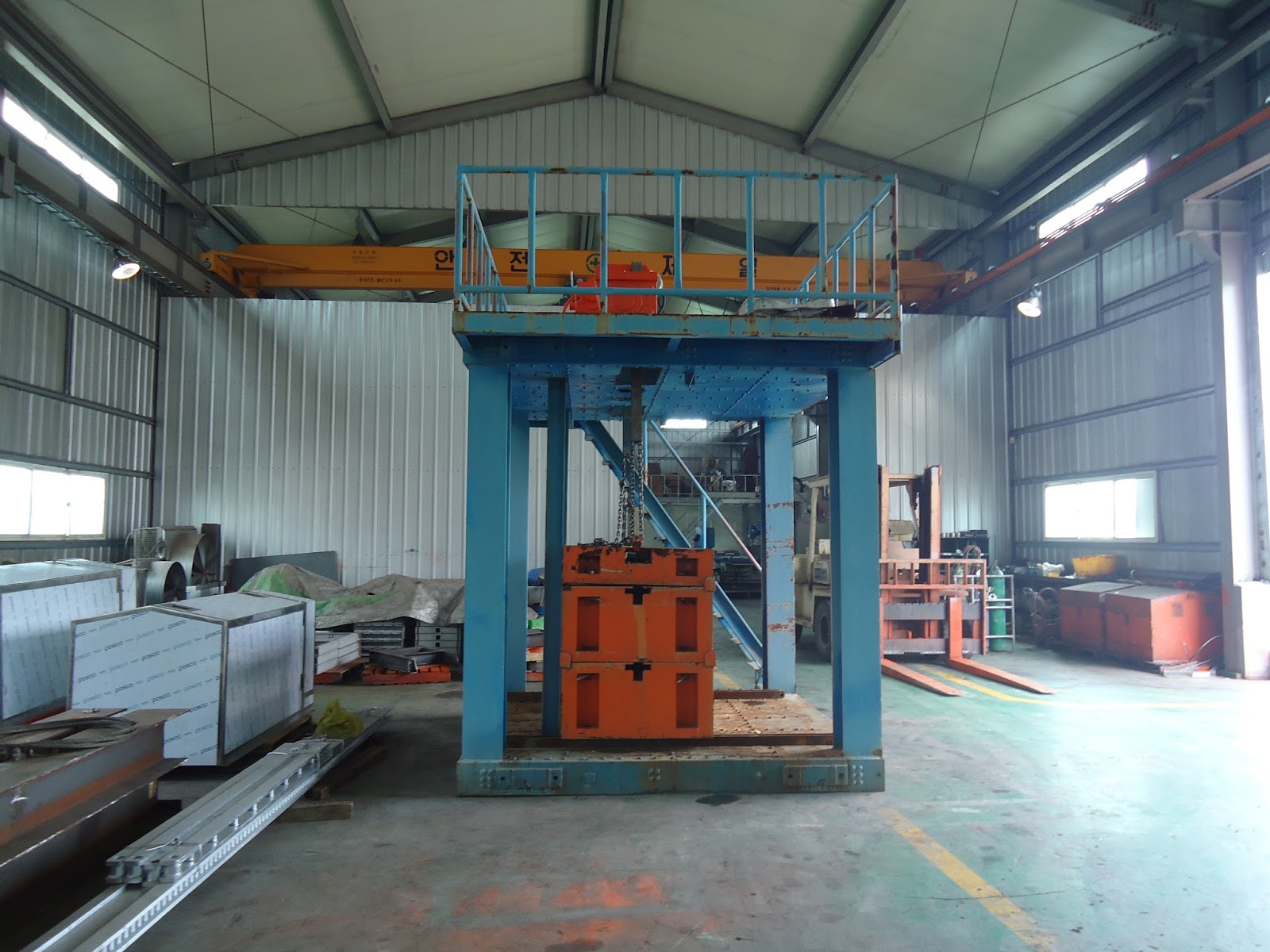

                             Actuator is installed at the test bench to show the lifting capability
                              at the factory for Factory Acceptance Test.

                            Weight which is equivalent to the actuator capacity is connected to
                              the actuator.

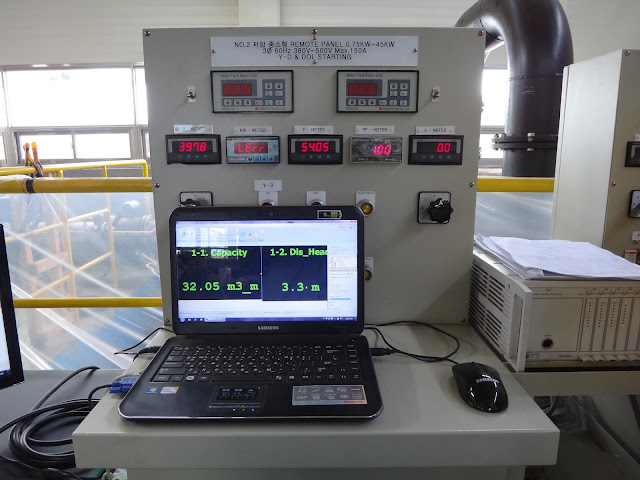

                           Each related data is shown on the test monitoring notebook and panel
                           during the performance test for a submersible pump at the factory shop.

                           Concrete structure is provided for the major equipments installation.

                                                               Pump gate is installed.

                                    Actuator is installed at the top of the concrete structure.

                                            Side view of the actuator at the top

                             The front view shows the actuators at the top and the pump gates
                               in the middle.
