Pump Capacity : Ф1,350mm x 240cmm x 5mH x 5ea
: Ф1,000mm x 120cmm x 5mH x 1ea
Contract Period : 2007. 08. 30 ~ 2009. 02. 20
Location : Bulam-dong, Ghimhae-city, Gyeongnam-do, Korea
pouring in order to provide the pump gate with a vertical movement
way on which rollers on both sides run.
Actuator is installed at the top of the test bench to show its lifting capacity
during the factory acceptance test.
Submersible pump is now under the performance test at the manufacturer's
factory during the factory acceptance test.
Roller gate is lifted for the installation on the guide frame after the main
structure is made.
Pump is lowered in order to be mounted on the roller gate.
Actuator is lowered to be positioned on the base frame.
Rotary screen is installed in order to guarantee the safe pump operation
by filtering the debris at the inlet flow to the pump.
Civil work is made for the floor at the outlet drainage way.
Inspection for the pump gate is performed for the final check.
Test for the local control panel is performed to confirm the correct
operation of the controlling & monitoring for pump and actuator.

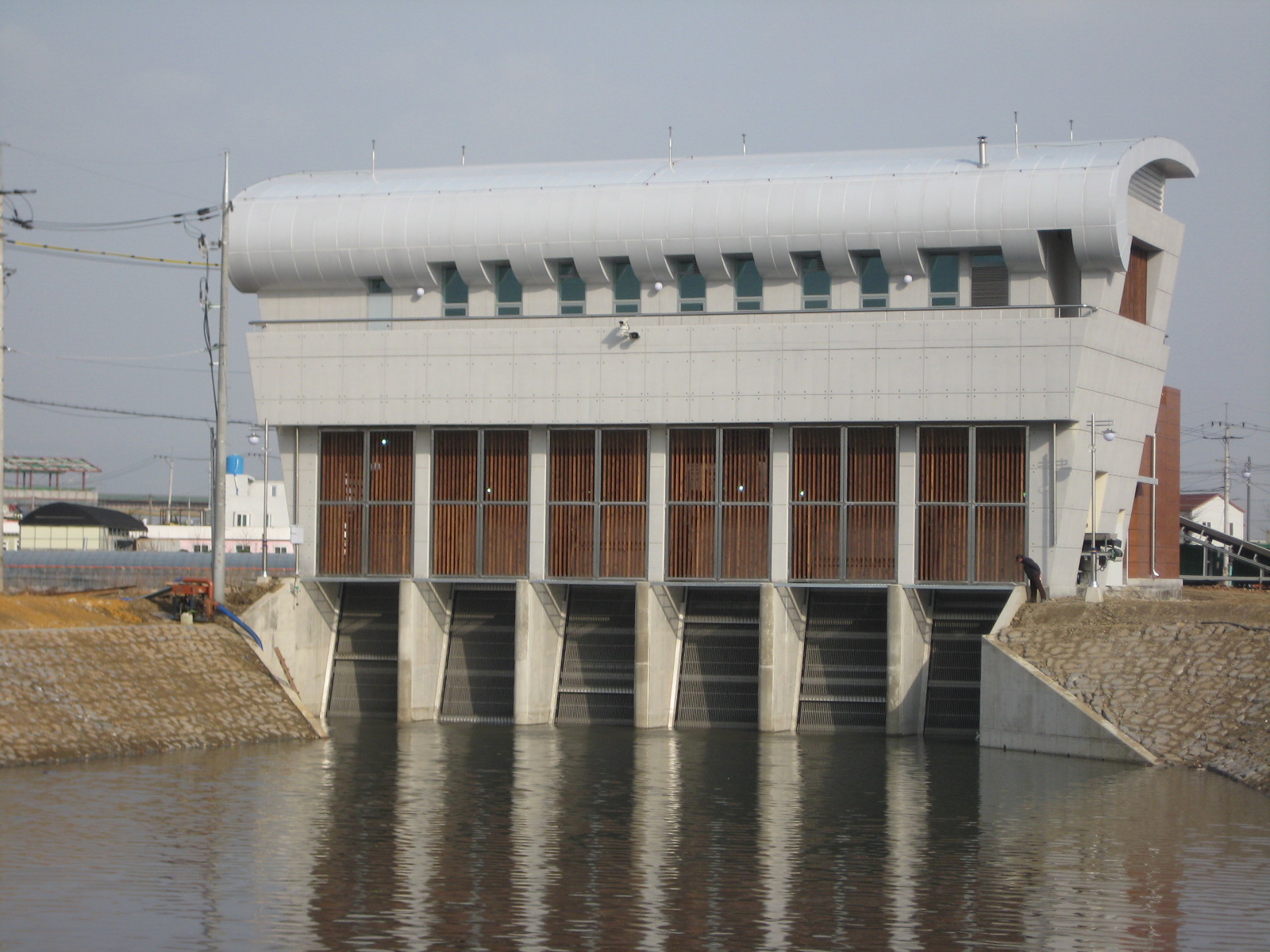

The rear view shows the pump station from the outlet of the drainage way.
